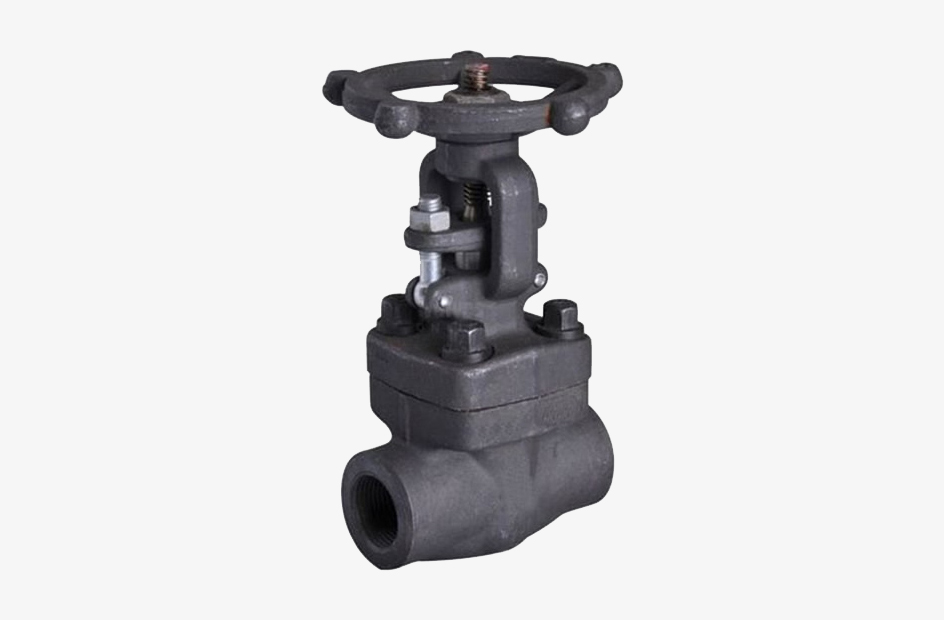

Forged Steel Gate Valve
- Home // products // Forged Steel Gate Valve
| Size | 1/4″ to 2” (8mm to 50mm) |
| Pressure Rating | ASME 150# to 2500# |
| Design Standard | API 602 |
| Pressure / Temperature Rating | ASME B 16.34 |
| Test (Inspection) Standard | API 598 |
| Construction Details | Bolted Bonnet / Pressure Seal Bonnet |
| End Connection | Screwed, Socket Weld, Flanged, Butt-Weld, Nipple Extended |
| Operation | Hand Wheel |
| Material | |
| Carbon steel | A105N |
| Low Carbon steel | LF2 |
| Stainless Steel | F304L, F316L, F321, F347 |
| Alloy Steel | F5, F9, F11, F22, F91 |
| Duplex & Super Duplex Steel | F51, F53, F55, F60 |
| Special Grades | Inconel, Monel, Alloy 20, Nickel Alluminium Bronze |
