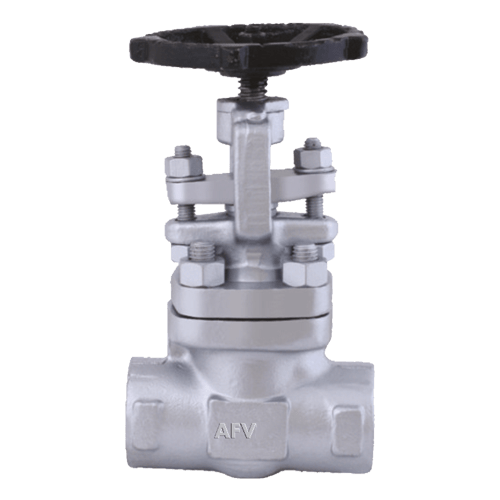

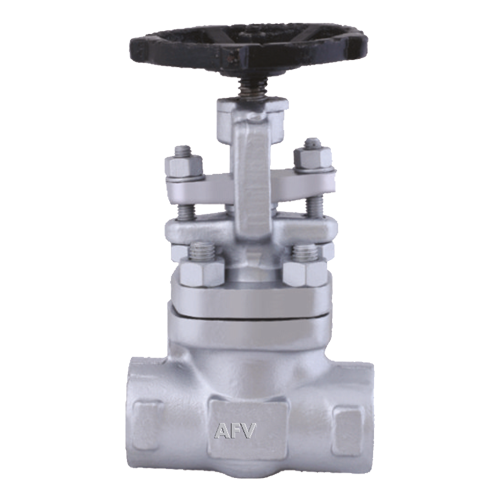

Forge Steel Globe Valve
Size = 1/4” (6 mm) to 2” (50 mm)
Class = 800# / 1500# / 2500#
End = Threaded / Socket Weld / Butt Weld Ends
Design = API-602 / BS 5352 / B 16.11 / B 16.25
Features = Bolted / Welded Bonnet
*Special Material & Higher Size/Class Valves also available on request.
| SIZE | L | H | H1 | ØWH | SCR. | ENDS | SW. ENDS | ||
| OD | |||||||||
| ØC | E | Max. | Min. | F(Min.) | |||||
| 15 | 85 | 162 | 170 | 90 | 1/2" | 13.56 | 22.22 | 21.72 | 9.65 |
| 20 | 92 | 170 | 180 | 90 | 3/4" | 13.87 | 27.56 | 27.05 | 12.7 |
| 25 | 105 | 190 | 202 | 90 | 1" | 17.35 | 34.29 | 33.78 | 12.7 |
| 40 | 127 | 243 | 260 | 145 | 1.1/2" | 18.38 | 49.15 | 48.64 | 12.7 |
| 50 | 140 | 255 | 272 | 145 | 2" | 19.23 | 61.62 | 61.11 | 15.75 |
| SIZE | L | H | H1 | ØWH | SCR. | ENDS | SW. ENDS | ||
| ØD | |||||||||
| ØC | E | Max. | Min. | F(Min.) | |||||
| 15 | 92 | 170 | 180 | 90 | 1/2" | 13.56 | 22.22 | 21.72 | 9.65 |
| 20 | 105 | 190 | 202 | 90 | 3/4" | 13.87 | 27.56 | 27.05 | 12.7 |
| 25 | 127 | 243 | 260 | 145 | 1" | 17.35 | 34.29 | 33.78 | 12.7 |
| 40 | 140 | 255 | 272 | 145 | 1.1/2" | 18.38 | 49.15 | 48.64 | 12.7 |
